Automatic high speed U shape flexible drinking straw bending machine

Name: Automatic high speed U shape flexible drinking straw bending machine
Brand: Chancer
Price: 1 USD

Buy cheap Automatic high speed U shape flexible drinking straw bending machine product

Brand Name : Chancer

Model Number : JH-02

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 100sets per year

Delivery Time : 30 working days after receive 30% deposit

Packaging Details : seaworthy package

Voltage : 380V 50Hz

Power(w) : 1.5KW

Condition : New

Dimension(l*w*h) : 1700*1350*1600mm

Warranty : 1 year

After-sales service provided : Engineers available to service machinery overseas

Straw Diameter : 3.8mm,4.5-6.0mm

Product Speed : 220pcs/minute

Product name : flexible straw making machine

Weight : 1000KG

Straw Wall Thickness : 0.15-0.20mm,0.10-0.18mm

Contact Now

Automatic high speed U shape flexible drinking straw bending machine

Product Detailed Description:

Model JH02 serious flexible straw auto making machine is JH01 series supplementary equipment,it carries on certain specification’s drink ascending straw second working,becomes the flexible straw. JH02-L flexible drinking straw bending machine provides high levels of performance for the production of flexible straws. The entire operation, from product in-feed, forming to product out-feed, is automatically performed requiring the operator to add the material into the hopper loader only. The straight straws supplied in the hopper at the top of machine, are fed one by one into the main drum of the machine and clamped by two mechanical catches.
As the main drum rotates, the straw passes through two rotary dies to receive die-pressed effect, is then compressed with two catches to from flexible, and is delivered to the ontput conveyor automatically. The main drum always carries 12 straws in successive and different operations. This development represents a giant step forword for higher production of flexible straws

Main technological parameter:

Type	JH02-L4	JH02-L5/6	JH02-H4 (High speed)	JH02-H5/6 (High speed)
ProductSpeed(pcs/min)	Max.﹥220	Max.﹥250	Max.﹥600	Max.﹥800
Straw Diameter(mm)	3.8	4.5-6.0	3.8	4.5-6.0
Straw Length(mm)	125-215	190-280	Fixed value	Fixed value
Straw Wall Thickness(mm)	0.15-0.20	0.10-0.18	0.15-0.22	0.15-0.22
Shot-past Length(mm)	35-48	35-48	Fixed value	Fixed value
Ring No	10(10-12)	11(10-13)	11(11-25)	12(11-25)
Appearance size(mm)	(LWH)170013501600		(LWH)220015001700
Weight(kg)	1000		1400
Total power	1.5(Inverter Control)

Contacts:

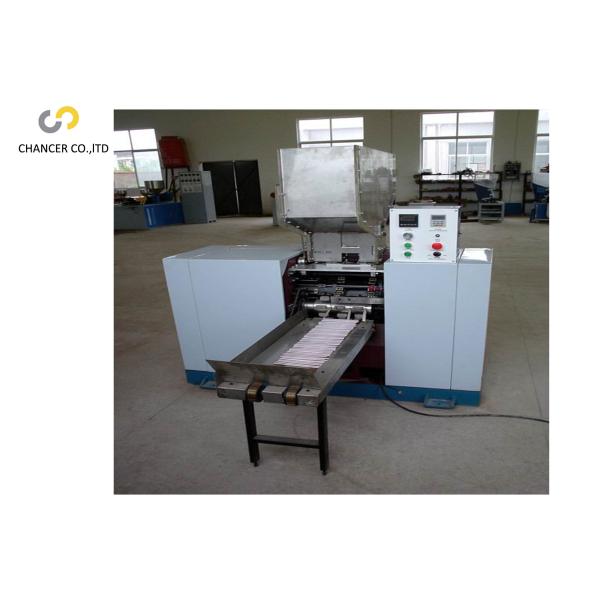

Machine picture:

Automatic high speed U shape flexible drinking straw bending machine

Sample picture:

Automatic high speed U shape flexible drinking straw bending machine
